GENERAL INFORMATION:

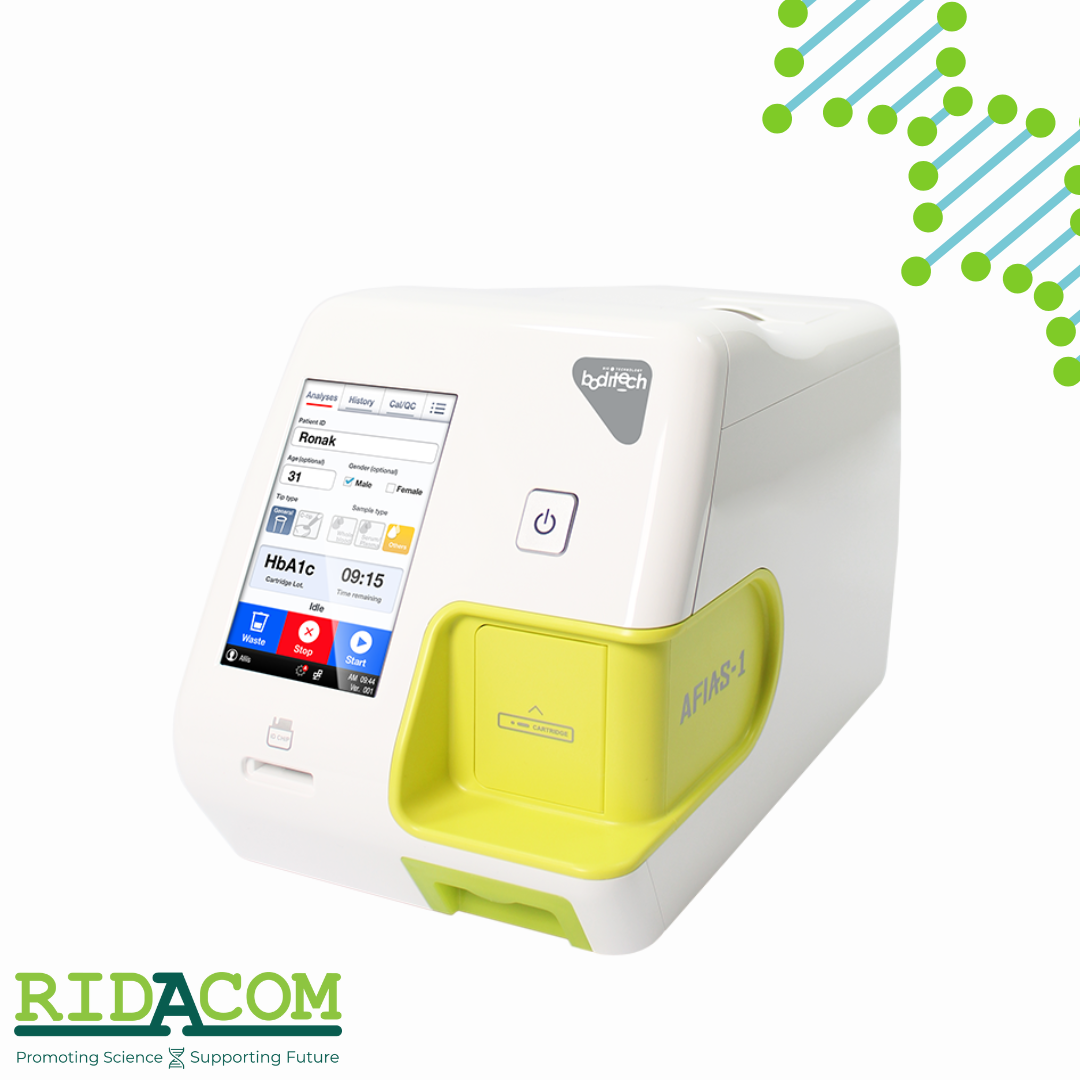

AFIAS-1 is a compact single-channel automated lateral flow immunoassay platform.
The system uses "all-in-one" test cartridges, including all necessary reagents, and enables the qualitative and quantitative determination of a large number of analytes in various samples - blood, incl. capillary; plasma; serum; urine; nasopharyngeal swab.
PRINCIPLE OF THE METHOD
The method is based on antigen-antibody reaction and fluorescence technology. The system uses a diode laser as a light source and, upon contact with the test cartridges, induces fluorescence from the fluorochrome-labeled analyte complexes accumulated in the test line on the membrane. The fluorescence intensity is scanned and converted into an electrical signal. The on-board microprocessor calculates the analyte concentration in the test sample based on a pre-programmed calibration obtained from the AFIAS ID chip inserted into the ID chip port. The calculated quantitative result is displayed on the AFIAS-1 display screen.
CATEGORIES OF INVESTIGATION PARAMETERS:
- Hormones
- Infections
- Diabetes
- Autoimmunity
- Therapeutic drug monitoring
- Heart markers
- Tumor markers
- Others
Features such as small size, easy operation procedure, lack of multiple reagents and the provision of fast and accurate results make the system an ideal complement for individual practices, small and medium-sized laboratories, medical centers and medical facilities.
TECHNICAL SPECIFICATIONS
- Dimensions: 320x204x180
- Weight: 3.9 kg
- 5" touch screen
- Built-in thermal printer
- USB port
- SD card slot
