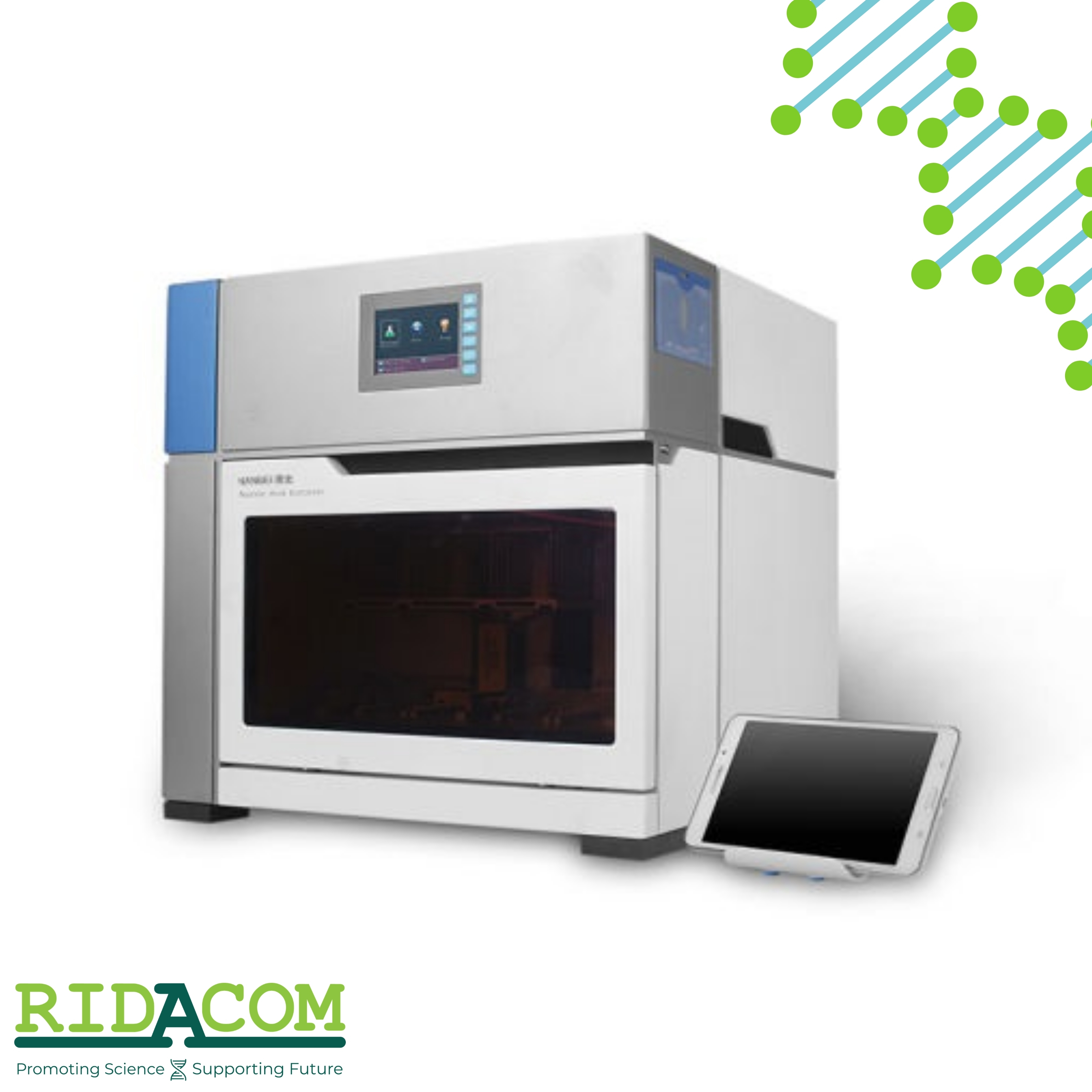

Tianlong Nucleic Acid Extractor Libex utilizes the proven magnetic-particle technology to extract highly purified nucleic acid from a wide range of sample types relevant for molecular diagnostics, genetic identity testing, forensic testing, biomedical research and gene expression analysis.
The combination of easy-to-use instruments, with pre-loaded protocols selection and magnetic particle-based sample preparation kits filled with unique special reagent ensures the rapid nucleic acid extraction and highly purified products.
Libex Extractor and Preparation Kits is offering you:
- Easy operation - Unique remote control pad, which saves time and improves your work efficiency
- Flexible solutions - Pre-loaded protocols selection for up to 15, 32 or 48 samples per run
- Free startup and immediate results - with special rapid agents the extraction can be done within 10 minutes
- Reliable results you can depend on - high quality nucleic acids, ready to use in sensitive downstream applications
Specifications:
Chinese / English operating system, Touch-control Operation
| Items | Parameter |
|
Processing Volume |
30 -1500μl,30-1000ul |
|
Capacity |
15,32,48 samples per run customized |
|
Collection efficiency of the magnetic particles |
≥95% |
|
Heating Temperature (Not suitable for 48samples per run) |
For cell lysis - room temperature to 120ºC
|
|
Processing-mode |
Multi-mode, multi-speed available |
|
Reagents |
Reagents suitable for Magnetic Particle Method |
| Operation Interface |
Chinese/English Language Operating System, Touch-control operation |
|
Storage Capacity |
15 preinstalled protocols in main unit, unlimited in pad |
|
Protocol Management |
Create, edit, delete, protocol mode |
|
Pollution control |
UV light |
|
Computer Interface |
USB |
|
Network Communication |
Ethernet(optional) |
|
Dimensions |
440mm(W)×435mm(L)×445mm(H) |
|
Weight |
31.5kg |
|
Power Requirements |
AC110±10%/230V±10%, 50Hz/60H±1Hz, 600W |
|
Temperatures allowed during operation |
10-40ºC |
| Relative humidity allowed during operation | <80% |
